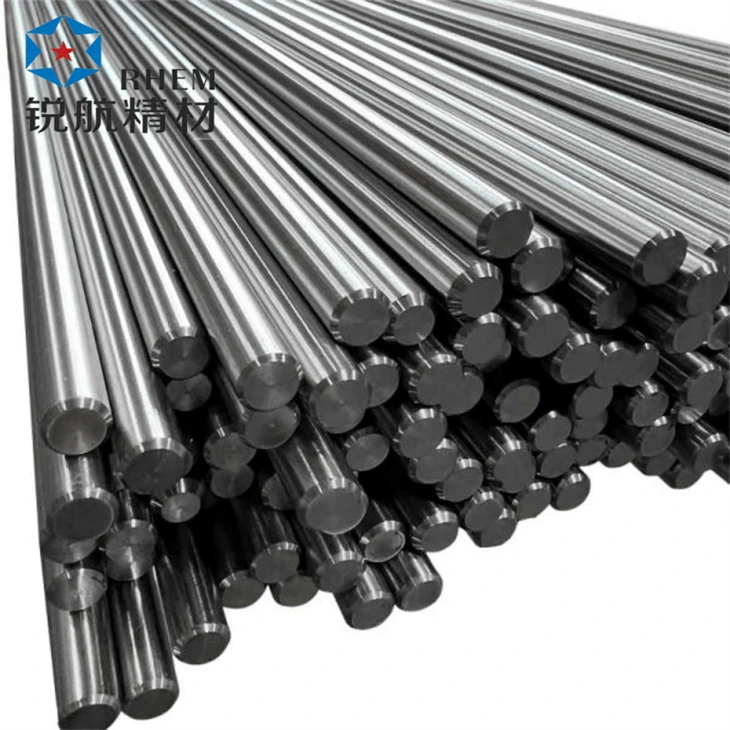

TC4 Titanium Alloy Round Qws
Qib: TC4, Qib 5
Khoom siv: Ti-6Al-4V
Txuj: ASTM B348 / AMS 4928
Txoj kab uas hla: Φ3mm ~ Φ75mm
Ntev: 100-6000 mm, kev cai txiav ntev muaj
Surface Condition: Av / Polished nto
Hauj lwm lawm
Kev tsis
Basic Introduction
TC4 (Ti-6Al-4V) yog siv dav tshaj plaws + hom titanium alloy. TC4 titanium round pas nrig yog cov khoom cylindrical titanium bar, tseem hu ua Qib 5 titanium bar hauv ASTM tus qauv. Nws sib npaug lub zog siab, tsis tshua muaj siab, zoo heev corrosion kuj thiab zoo txhua yam khoom siv.
Chemical Composition (wt%)
|
Element |
Ti |
Al |
V |
Fe |
C |
N |
O |
H |
|
Min |
Tshuav |
5.50 |
3.50 |
- |
- |
- |
- |
- |
|
Max |
Tshuav |
6.75 |
4.50 |
0.40 |
0.08 |
0.05 |
0.20 |
0.015 |
Mechanical Properties
|
Yam khoom |
Kev xav tau |
|
Tensile zog, Rm |
Ntau dua lossis sib npaug rau 860 MPa |
|
Yield zog, Rp0.2 |
Ntau dua lossis sib npaug li 790 MPa |
|
Elongation A |
Ntau dua lossis sib npaug li 10% |
|
Kev txo qis ntawm cheeb tsam Z |
Ntau dua lossis sib npaug li 25% |
|
Qhov ntom |
4.51 g / cm³ |

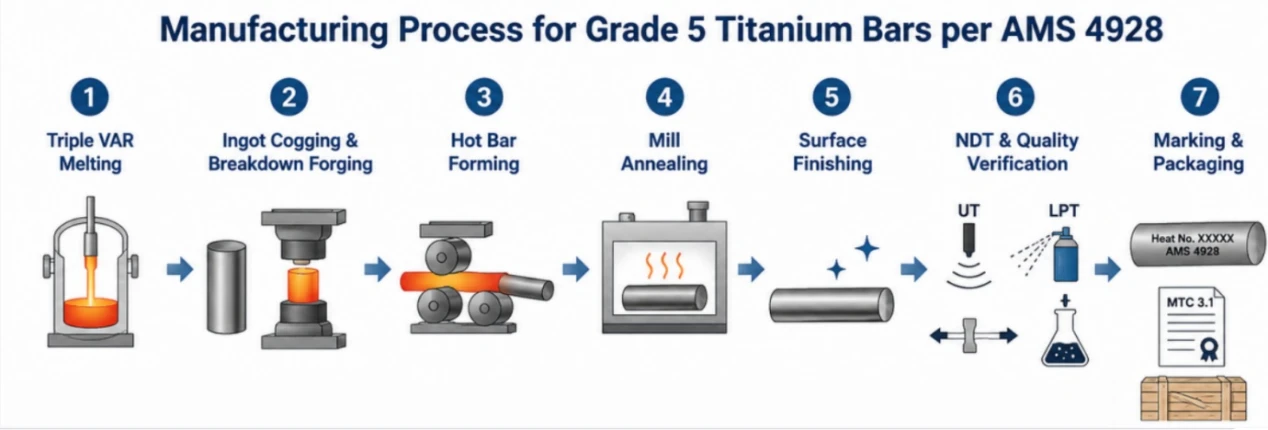

Kev tsim cov txheej txheem ntawm TC4 Titanium Alloy Round Bar
1. Ingot Melting (VAR)
Raw cov ntaub ntawv titanium daim txhuam cev, txhuas pellets, vanadium master alloy thiab titanium rov qab. Muab cov ntaub ntawv sib xyaw ua ke rau hauv electrodes, tom qab ntawd ua ob npaug / triple nqus arc remelting (VAR) los tsim cov khoom siv TC4.
2.Ingot Breakdown Forging
Kub ingots rau + forging kub. Rov ua kev ntxhov siab thiab kev kos duab tawg ntxhib cam khwb cia nplej thiab ua kom zoo dua microstructure, tsim cov titanium loj loj.
3. Kub Rolling / Precision Forging
Me me txoj kab uas hla: Nruam kub dov
Loj txoj kab uas hla: Hydraulic xovxwm nyob ze -net forging nruj kub & lub sij hawm tswj tiv thaiv overheating thiab txawv txav grain loj hlob.
4. Skew Rolling Straightening
Cov kub dov billets mus los ntawm skew dov straightening tshuab los tsim cov puag ncig.
5. Kev kho cua sov
Kev ntxhov siab-relief los yog tag nrho annealing: tuav thiab maj mam txias kom tshem tawm forging/rolling residual stress, stabilize microstructure thiab mechanical zog kom tau raws li tensile thiab yield zog specs. Kev daws thiab kev laus muaj rau kev xav tau ntau zog.
6. Nto Machining
Tig kom tshem tawm cov nplai oxide thiab cov kab mob sib kis. Precision ci rods xav tau kev sib tsoo kom nruj txoj kab uas hla kam rau ua thiab tsis tshua muaj roughness.
7. Txiav & tiav
Txiav rau cov neeg siv khoom ntev, deburr kawg thiab huv si.
8. Kev soj ntsuam zoo
Txheeb xyuas qhov ntev, qhov tsos, cov khoom siv kho tshuab thiab cov tshuaj muaj pes tsawg leeg. Kev kuaj Ultrasonic (UT) kuaj pom cov teeb meem sab hauv. Tshaj tawm MTC 3.1 cov ntaub ntawv xeem daim ntawv pov thawj.
9. Ntim & Xa
Anti- xeb ntim nrog cov cim cim (qib, txoj kab uas hla, cua sov & batch tooj) rau cov khoom xa tuaj.
Cov Txheej Txheem Kev Lag Luam rauTC4 Titanium Alloy Round Bar
Ua ntej
- Txais thiab sau npe nug cov neeg siv khoom.
- Paub meej tias tag nrho cov yuav tsum tau muaj: qib khoom, qhov ntev, kom muaj nuj nqis, nto tiav, ua tiav cov qauv thiab cov nqe lus lag luam.
- Txheeb xyuas tus nqi raw khoom thiab paub meej tias cov sijhawm tsim khoom & sijhawm ua haujlwm.
- Xam cov nqi sib tw: cov khoom siv, kev ua, ntim, freight thiab cov nqi tariffs.
- Npaj daim ntawv hais lus nrog tus nqi, lub sijhawm siv tau thiab cov nqe lus them nqi.
- Tshaj tawm thiab xa cov lus tshaj tawm rau tus neeg siv khoom.
Thaum
- Kev sib tham txog cov ntsiab lus ntawm kev txiav txim.
- Kos npe rau daim ntawv cog lus thiab npaj kev tso nyiaj lossis tag nrho cov kev sib pauv raws li qhov zoo.
- Npaj cov Tshuag, tshuaj xyuas thiab cov ntaub ntawv.
- Ua kom tiav packing thiab npaj logistics.
Tom qab
- Ua kom tiav daim ntawv tshaj tawm kev cai thiab kev them nyiaj sib npaug.
- Tso tawm thiab xa cov ntaub ntawv tseem ceeb.
- Ua kom tiav kev tshem tawm thiab kev txhawb nqa tom qab - kev pabcuam.
Cov neeg siv khoom tiag tiag
1. loj enterprise nplai
Kev Muag Khoom Kos Npe
Peb tau txais kev nug rau Qib 5 titanium tuav los ntawm South Kauslim. Ob tog sib tham cov nqe lus thiab kos npe rau daim ntawv cog lus muag.
2. Cov qauv xeem dhau los
Peb tau kuaj xyuas cov duab kos thiab cov kev xav tau tiag tiag hauv cov ntsiab lus. Tom qab ntawd peb npaj cov khoom xa tuaj nrog cov ntaub ntawv tag nrho ua raws. Thaum kawg, peb cov neeg siv khoom tiav kev them nyiaj.
3. Khoom lus tawm tswv yim
Cov neeg siv khoom tau txais lub qhov rooj ntawm cov khoom muag - mus rau - qhov rooj thiab siv lawv rau cov dej num hauv hiav txwv. Lub tensile thiab mechanical zog ua tau raws li qhov yuav tsum tau ua. Ob tog tos ntsoov rau kev koom tes ntxiv.
Vim li cas thiaj xaiv peb?
peb cov kev pabcuam
Geographic & Industrial Chain Advantages
Nyob rau hauv Baoji ("Tuam Tshoj's Titanium Valley"), peb txaus siab rau ib tug concentrated titanium industrial puag thiab ib tug ua tiav kev lag luam saw system.
Tus nqi & Tom qab -Kev them nyiaj yug muag
Kev vam khom rau kev lag luam muaj zog, kev ua haujlwm siab thiab cov txiaj ntsig ruaj khov, peb muab cov nqi sib tw thiab lav kev ntseeg siab tom qab- kev muag khoom.
Strict Quality Assurance
Muaj ntawv pov thawj rau EN ISO 9001: 2015 & EN 9100: 2018 los ntawm Fab Kis BV xyoo 2025. Peb muaj ib qho hauv - lub tsev xeem qhov chaw nruab nrog ntau tshaj 15 cov cuab yeej ntsuas qib siab, thiab thib peb - cov kev pabcuam kuaj thib peb muaj. Kev tswj xyuas nruj kom ntseeg tau tias txhua yam khoom ua tau raws li cov neeg siv khoom xav tau.
Tiv tauj peb
Ruihang Group tshwj xeeb hauv kev tsim khoom ntawm Titanium & Titanium Alloy Phaj / Ntawv, Bar, Yeeb, Nplhaib, Forging Tshuag & Tshooj. Qhov zoo siv nrog tus qauv ntawm AMS, ASTM, MIL, ISO, GB, GJB.
Peb yog lub tuam txhab thev naus laus zis thiab kev tsim kho tshiab uas koom ua ke R & D, ntau lawm thiab muag khoom rau hauv ib qho kev sib koom ua ke. Rau txhua qhov kev xav tau, thov hu rau peb ntawm email: E-mail:Sam.Rui@bjrh-titanium.com
Cim npe nrov: tc4 titanium alloy round pas nrig, Tuam Tshoj tc4 titanium alloy round qws manufacturers, lwm tus neeg, Hoobkas
